Qubenext
A new handy way to improve
your particle therapy qa
Get the full QA characterisation of your beam
Qubenext
A new handy way to improve
your particle therapy qa
Get the full QA characterisation of your beam
Full beam characterisation in a single beam run
Ten years, third generation product

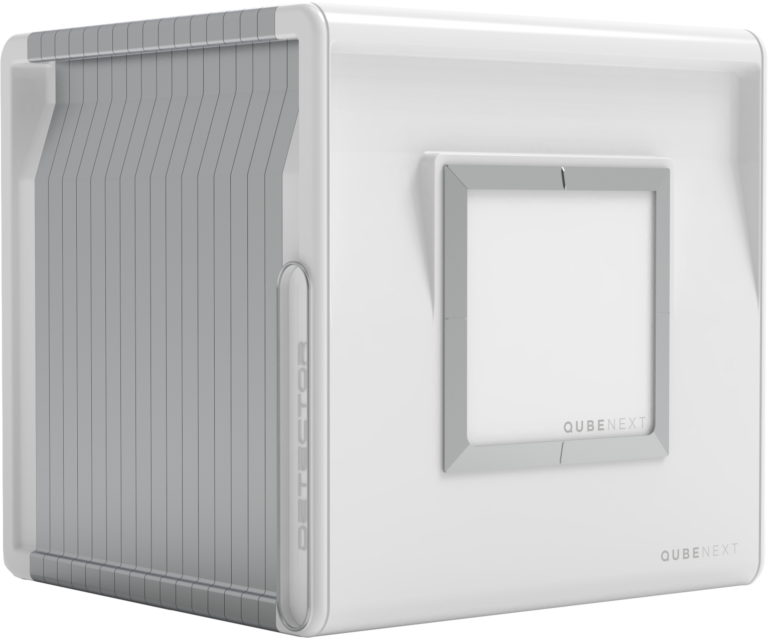

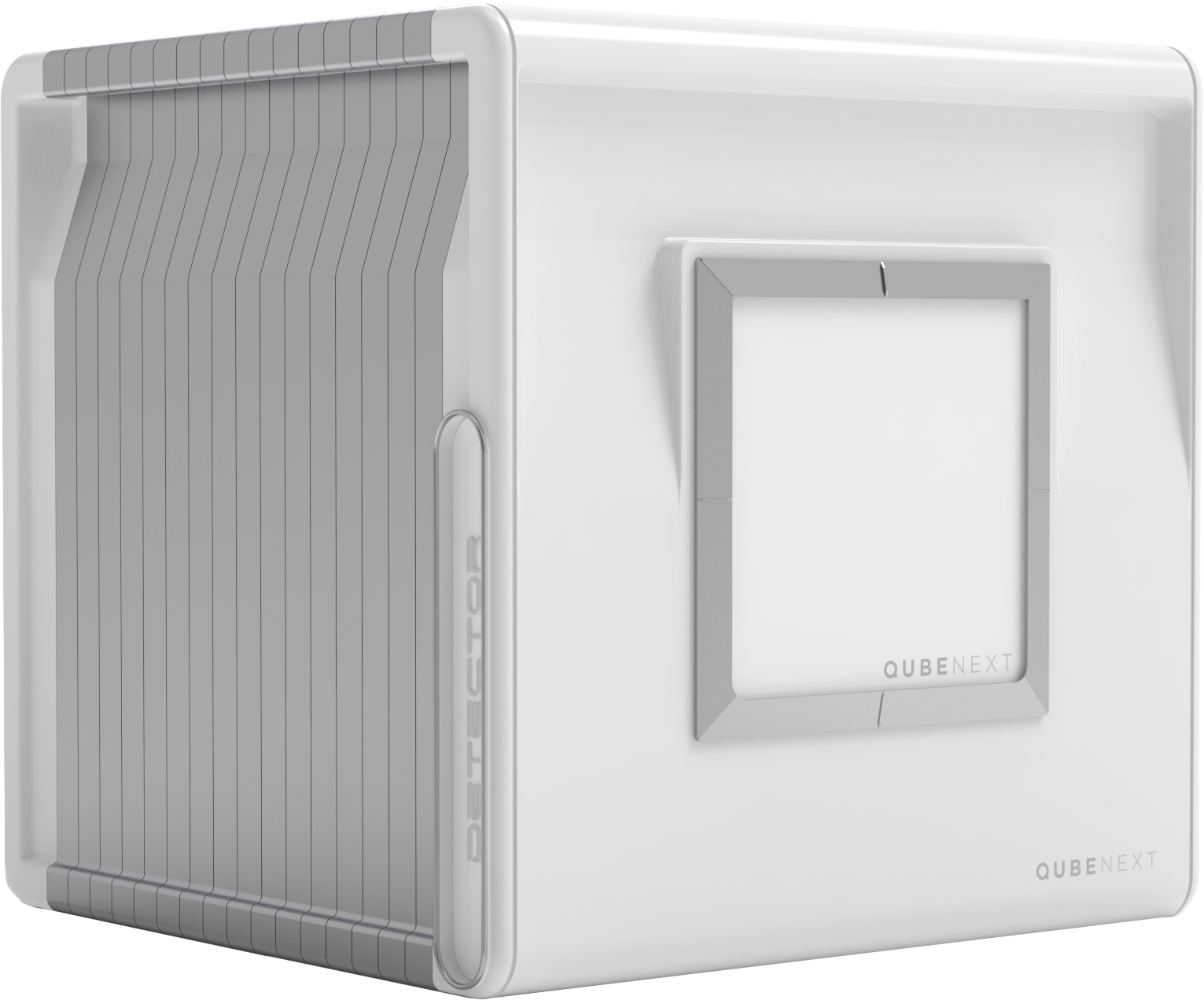

A Multilayer Ionization chamber
Based on TERA chip technology
Full beam characterisation in a single beam run
Based on TERA chip technology
Ten years, third generation product
A Multilayer Ionization chamber
The all in one
Beam QA
The all in one Beam QA
Energy, position, intensity, profile
It verifies depth dose curves through multi-layer ionization chambers and integrates dedicated X and Y strip chambers modules for simultaneous position and profile measurements.
For both protons and heavy ions
It allows to verify the position of the peak fall-off region with a water equivalent resolution better than 500 um during the weekly and monthly QA procedures.
High resolution

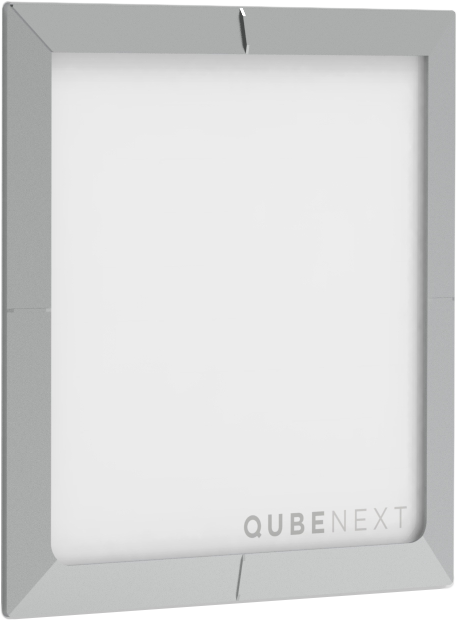

The new housing for PMMA absorbers in front of the device allows increasing the spatial resolution in depth dose measurements.
Energy, position, intensity, profile
It verifies depth dose curves through multi-layer ionization chambers and integrates dedicated X and Y strip chambers modules for simultaneous position and profile measurements.
For both protons and heavy ions
It allows to verify the position of the peak fall-off region with a water equivalent resolution better than 500 um during the weekly and monthly QA procedures.
High resolution
The new housing for PMMA absorbers in front of the device allows increasing the spatial resolution in depth dose measurements.
Quick and reliable
Easy, accurate and fast from set-up to data analysis
Place it at the isocenter and quickly verify beam profile, range and modulation with only one beam run.
Customizable set up: different number of MLIC channels to cover different energy ranges and possibility of adding strip modules for beam position and dimension measurements
360 mm3
Dimensions
10 - 40 Kg
Weight
Technical Specifications
TYPE OF DETECTOR
Air vented ionization chamber
NUMBER OF CHANNELS
From 32 to 160 channels – 8 channels each module
RANGE COVERED
up to 384 mm
TOTAL SENSITIVE AREA
127 mm x 127 mm
CHAMBER AIR GAP
1mm
PITCH
~ 2,4 mm in water (absorbers: 1 mm Al)
INTERPOLATED RESOLUTION
0.5 mm in water
REPEATABILITY OF THE MEASUREMENT
> 99 %
MAXIMUM RAW DATA ACQUISTION RATE
1 kHz (parallel read-out of all the channels)
DATA COMMUNICATION
Ethernet TCP/IP
EXTERNAL DIMENSIONS
360 x 360 x 360 mm3 (16 modules)
WEIGHT
From 10 kg (4 modules) to 40 kg (20 modules)
Come and see the magic!
What’s behind a reliable and performing device? A beating heart and a smart brain.
All our devices are based on proprietary front-end electronics and include embedded software, power supply and control unit for an optimized signal to noise ratio and a more comfortable set up.
Design Made in Italy
Tera Chip
The Detector’s beating heart
Optimized signal to noise ratio
The TERA chip is the core of all our devices.
It guarantess an digitalization of the analog singnals next to the sensor to improve the signal to noise ration.
Wide dinamic range
A versatile solution
Simplify your QA with precise data analysis and record
The Smart Brain
Quick data analysis
High accessibility
With its browser-based versatile QA data management software, it allows accessing the data logbook from any terminal device.
