Spot profile characterization

Designed to be placed at the isocenter of passive scattering lines for 2D spot characterization

Fast ocular QA measurements

Conceived to speed up routine in eye tumor treatment quality assurance measurements and to replace the use of Gafchromic films.

Quick and integrated solution

It includes dedicated software, power supply and electronic interfaces for an easier setup and a enhanced signal-to-noise ratio.

Spot profile characterization

Designed to be placed at the isocenter of passive scattering lines for 2D spot characterization

Fast ocular QA measurements

Conceived to speed up routine in eye tumor treatment quality assurance measurements and to replace the use of Gafchromic films.

Quick and integrated solution

It includes dedicated software, power supply and electronic interfaces for an easier setup and a enhanced signal-to-noise ratio.

An alternative to gaf chromic films

Precise and immediate

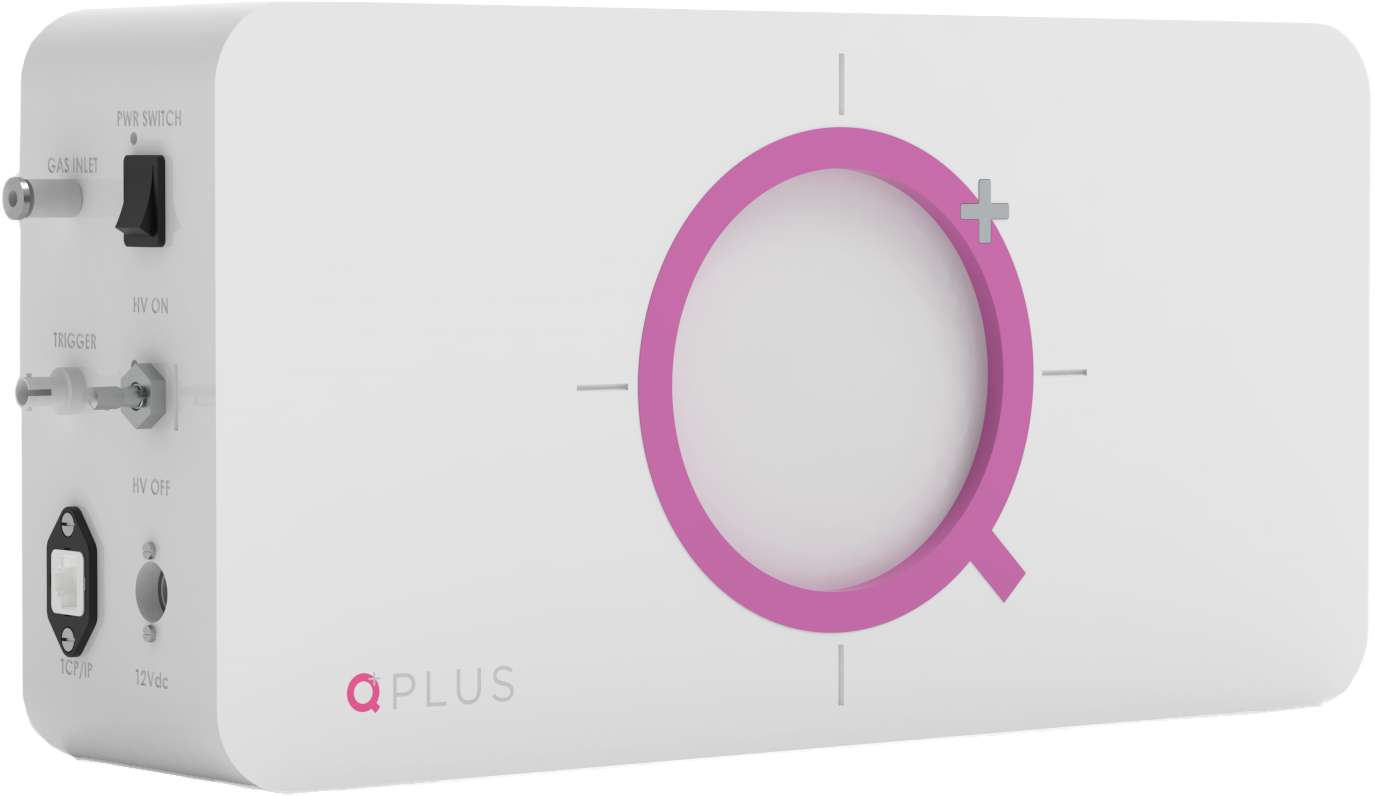

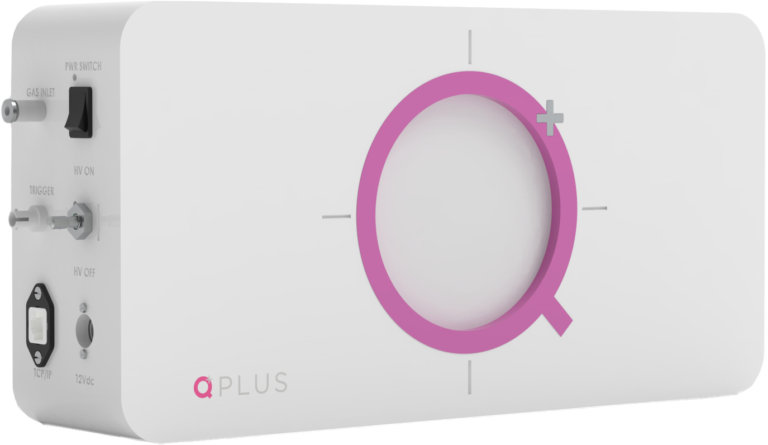

Qplus has a special dotted pad along X and Y direction with 63 measurement points of 0.5 mm diameter at a pitch of 0.6 mm along vertical and horizontal direction.

360 x 180 x 90 mm3

Dimensions

<5 Kg

Weight

Mano grande
Qp lat
Mano grande
Qp lat

Technical Specifications

TYPE OF DETECTOR

Air vented ionization chamber

NUMBER OF CHANNELS

63 X dots and 63 Y dots

TOTAL SENSITIVE AREA

37,8 mm x 37,8 mm

DOTS DIMENSION

Ø 0,5 mm

PITCH

0,6 mm

REPEATABILITY OF THE MEASUREMENT

> 99 %

DATA COMMUNICATION

Ethernet TCP/IP

EXTERNAL DIMENSIONS

360 x 180 x 90 mm3

WEIGHT

<5 kg

Qp det

Come and see the magic!

What’s behind a reliable and performing device? A beating heart and a smart brain.
All our devices are based on proprietary front-end electronics and include embedded software, power supply and control unit for an optimized signal to noise ratio and a more comfortable set up.

Design Made in Italy

Tera Chip

The Detector’s beating heart

Optimized signal to noise ratio

The TERA chip is the core of all our devices.
It guarantess an digitalization of the analog singnals next to the sensor to improve the signal to noise ration.

Wide dinamic range

TERA is designed to guarantee a high charge sensitivity (down to 50 fC) while ensuring a wide dynamic range (from 1 pA to 3 mA).

A versatile solution

Suitable for different detector technologies as ionization chambers, scintillators, electrometers. Tested and verified with all the particle therapy accelerators (cyclotrons, synchrotrons, linear accelerators) and all their beam structures.

Simplify your QA with precise data analysis and record

The Smart Brain

Quick data analysis

All our devices are equipped with data analysis software conceived to speed up all the routine QA measurements with an intuitive, functional and user-friendly interface. From measurement to report in a few clicks.

High accessibility

With its browser-based versatile QA data management software, it allows accessing the data logbook from any terminal device.

Raw data transparency

The QA raw data can be visualized, exported, and analysed by choosing among the preconfigured analysis protocols or implementing personalized algorithms in a comprehensive software development environment.

Report and data storage

A dedicated report function allows creating, storing and printing a detailed description of the measured data and QA results.Â
