NextQ
A new handy way to improve
your particle therapy qa
All-in-one and accurate device to speed up your QA procedures
NextQ
A new handy way to improve
your particle therapy qa
All-in-one and accurate device to speed up your QA procedures
All-in-one device for beam profile measurements
Small dimensions, large possibilities

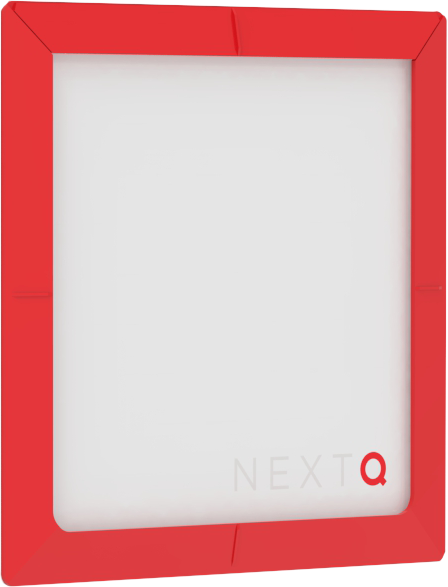

X and Y STRIP ionization chamber
Based on TERA chip technology
All-in-one device for beam profile measurements
Based on TERA chip technology
Small dimensions, large possibilities
X and Y STRIP ionization chamber
Fast, Reliable, Precise
Fast, Reliable, Precise
Position, shape, intensity

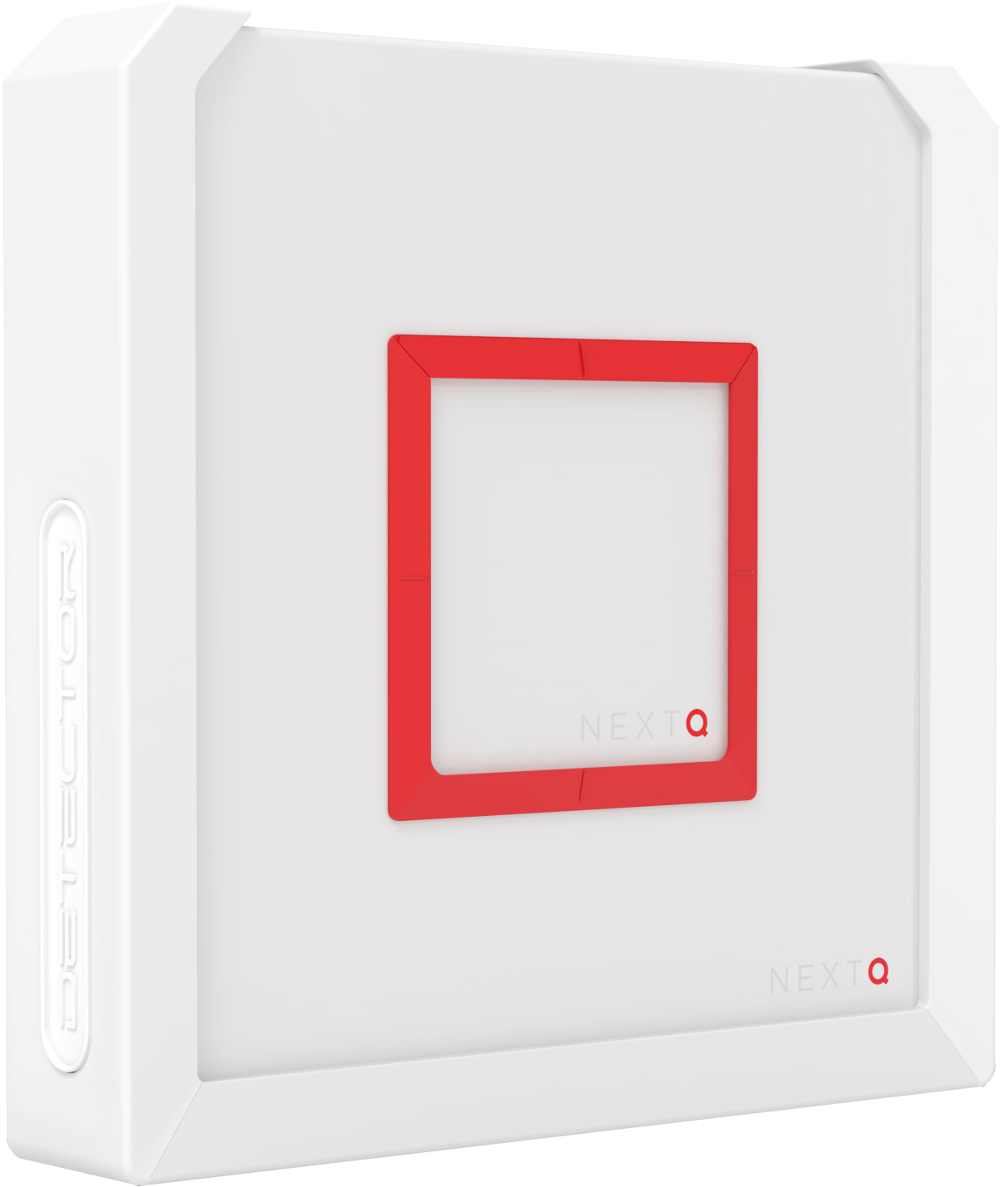

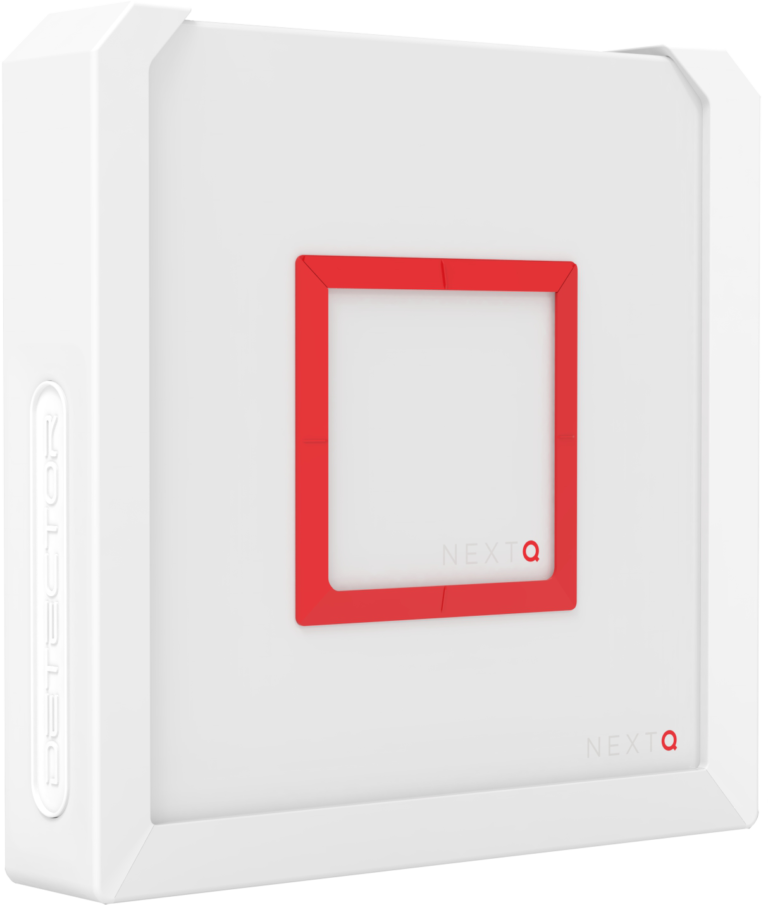

NextQ is conceived to be placed at the isocentre and measure all the principal beam parameters: position, shape and intensity. It can be placed facing horizontal line or laid down for vertical lines.
Easy mechanical fixation
NextQ allows for the acquisition of the beam parameters with one single beam shot. Thanks to its new fixing holes, nextQ is suitable to be mounted at the isocentre on every docking station or even on gantry mechanical support.
For protons and heavy ions
Ideal for pencil beams of protons and carbon ions and beam characterization tests. NextQ is aimed at all medical and accelerator physicists who require a fast, reliable, precise and compact device.
Position, shape, intensity
NextQ is conceived to be placed at the isocentre and measure all the principal beam parameters: position, shape and intensity. It can be placed facing horizontal line or laid down for vertical lines.
Easy mechanical fixation
NextQ allows for the acquisition of the beam parameters with one single beam shot. Thanks to its new fixing holes, nextQ is suitable to be mounted at the isocentre on every docking station or even on gantry mechanical support.
For protons and heavy ions
Ideal for pencil beams of protons and carbon ions and beam characterization tests. NextQ is aimed at all medical and accelerator physicists who require a fast, reliable, precise and compact device.
Handy and light
Ideal for scanned beams and beam characterization tests
Including X and Y strip ionization chambers to measure the beam profiles and two integral chambers for redundant particle flux measurements.
436 x 427 x 83 mm3
Dimensions
8 Kg
Weight
Technical Specifications
TYPE OF DETECTOR
Air vented ionization chamber
NUMBER OF CHANNELS
127 X strips and 127 Y strips + 2 integrals
TOTAL SENSITIVE AREA
127 mm x 127 mm
CHAMBER AIR GAP
2mm
PITCH
1mm
INTERPOLATED RESOLUTION
0.1 mm
REPEATABILITY OF THE MEASUREMENT
> 99 %
MAXIMUM RAW DATA ACQUISTION RATE
1 kHz (parallel read-out of all the channels)
DATA COMMUNICATION
Ethernet TCP/IP
EXTERNAL DIMENSIONS
436 x 427 x 83 mm3
WEIGHT
8 kg
Come and see the magic!
What’s behind a reliable and performing device? A beating heart and a smart brain.
All our devices are based on proprietary front-end electronics and include embedded software, power supply and control unit for an optimized signal to noise ratio and a more comfortable set up.
Design Made in Italy
Tera Chip
The Detector’s beating heart
Optimized signal to noise ratio
The TERA chip is the core of all our devices.
It guarantess an digitalization of the analog singnals next to the sensor to improve the signal to noise ration.
Wide dinamic range
TERA is designed to guarantee a high charge sensitivity (down to 50 fC) while ensuring a wide dynamic range (from 1 pA to 3 mA).
A versatile solution
Suitable for different detector technologies as ionization chambers, scintillators, electrometers.
Tested and verified with all the particle therapy accelerators (cyclotrons, synchrotrons, linear accelerators) and all their beam structures.
Simplify your QA with precise data analysis and record
The Smart Brain
Quick data analysis
All our devices are equipped with data analysis software conceived to speed up all the routine QA measurements with an intuitive, functional and user-friendly interface. From measurement to report in a few clicks.
High accessibility
With its browser-based versatile QA data management software, it allows accessing the data logbook from any terminal device.
Raw data transparency
The QA raw data can be visualized, exported, and analysed by choosing among the preconfigured analysis protocols or implementing personalized algorithms in a comprehensive software development environment.
Report and data storage
A dedicated report function allows creating, storing and printing a detailed description of the measured data and QA results.Â
