FlashQ
A new handy way to improve
your particle therapy qa

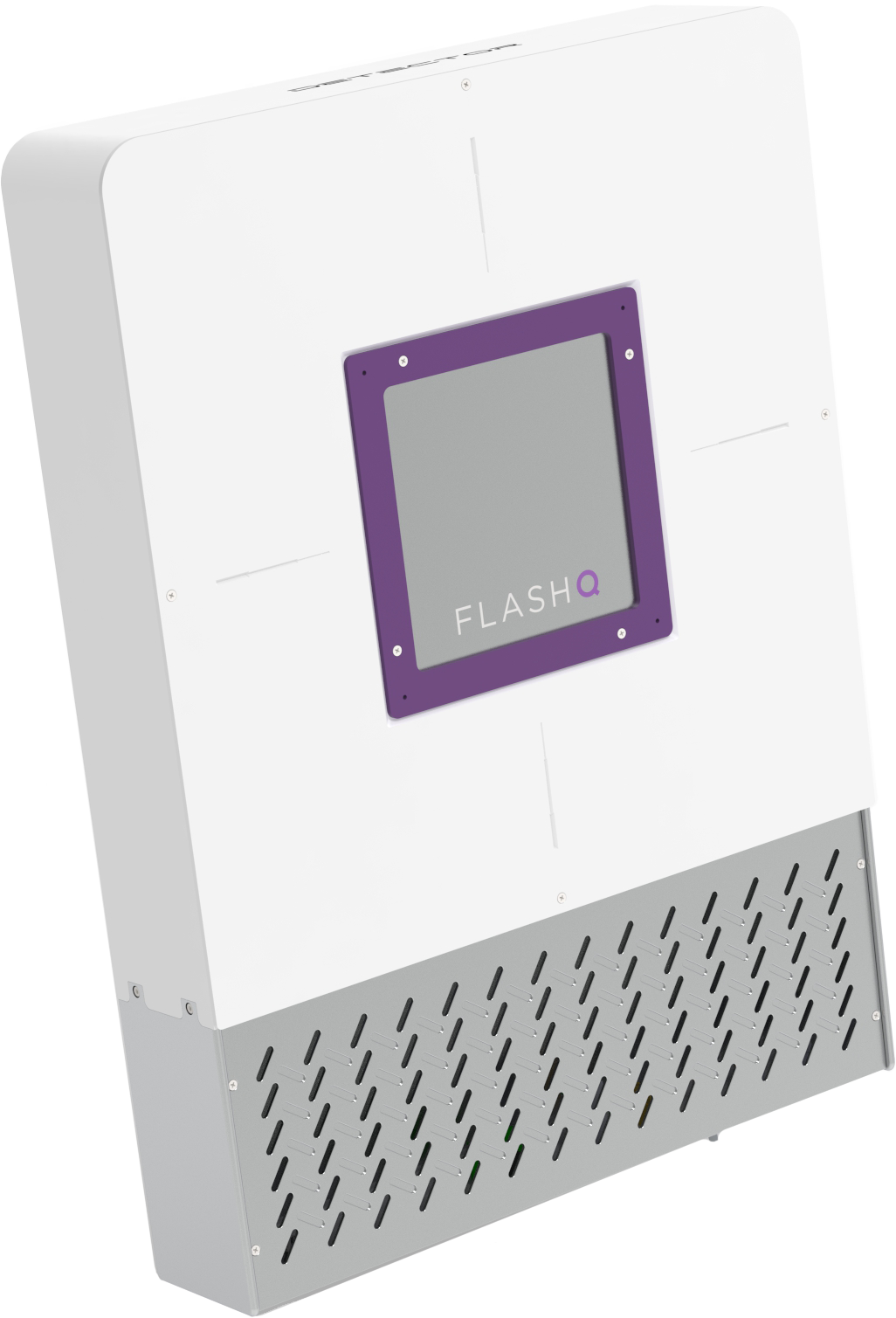

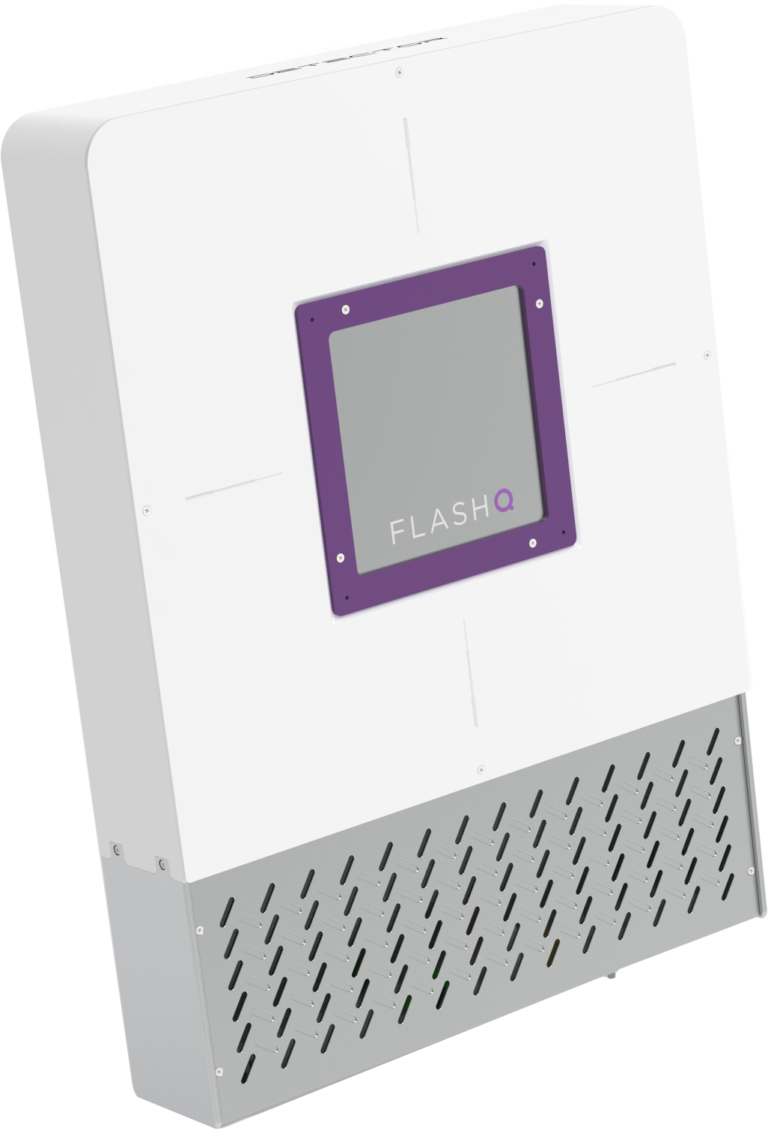

Our new ground-breaking device for flash proton therapy
FlashQ
A new handy way to improve
your particle therapy qa
Our new ground-breaking device for flash proton therapy
Conceived to cope with ultra-high intensity beams
Flash runs fast. So do we!
Next generation position and Dose IC
Based on TERA chip technology
Conceived to cope with ultra-high intensity beams
Based on TERA chip technology
Flash runs fast. So do we!
Next generation position and Dose IC
Exploring new frontiers in particle therapy
Exploring new frontiers in particle therapy
For ultra-high intensity beams
ideal solution for performing tests on ultra-high intensity beams aiming at studying their potential use in radiation therapy
Beam profile and particle flux
Aimed at medical and accelerator physicists who require a fast and reliable device, able to retrieve beam profile and particle flux estimation, with optimized signal collection in extended dynamic range.
Linearity over all the intensity range
Designed to overcome the recombination effects and the front-end signal saturation issues of traditional gas ionization chambers.
For ultra-high intensity beams
ideal solution for performing tests on ultra-high intensity beams aiming at studying their potential use in radiation therapy
Beam profile and particle flux
Suitable for conventional and ultra-high dose rates, the IC structure can offer sensitivity to low intensities and it copes with the Flash therapy clinical studies
Linearity over all the intensity range
Designed to overcome the recombination effects and the front-end signal saturation issues of traditional gas ionization chambers.
Fast to setup as a flash lightning
Long time experience on ionization chambers to explore new frontiers

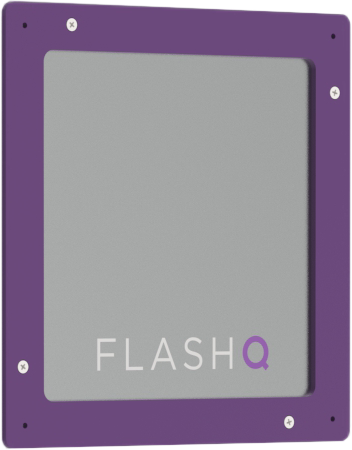

FlashQ is part of the DETECTOR all-in-one QA devices. With precise X and Y strips and integral measurements in ultra-high dose rates, controlled by front-end electronics and FPGA based control unit.
608 x 450 x 94 mm3
Dimensions
<10 Kg
Weight
Technical Specifications
TYPE OF DETECTOR
Air vented ionization chamber
NUMBER OF CHANNELS
128 strip X + 128 strip Y + 2 integrals
TOTAL SENSITIVE AREA
128 mm x 128 mm
INTENSITY RANGE
30pA-1uA
POSITION RESOLUTION
0,1 mm
REPEATABILITY OF THE MEASUREMENT
99%
NOMINAL RAW DATA ACQ. RATE
1 kHz
DATA COMMUNICATION
Ethernet TCP/IP
EXTERNAL DIMENSIONS
400 x 125 x 395 mm3
WEIGHT
~18 kg
Come and see the magic!
What’s behind a reliable and performing device? A beating heart and a smart brain.
All our devices are based on proprietary front-end electronics and include embedded software, power supply and control unit for an optimized signal to noise ratio and a more comfortable set up.
Design Made in Italy
Tera Chip
The Detector’s beating heart
Optimized signal to noise ratio
The TERA chip is the core of all our devices.
It guarantess an digitalization of the analog singnals next to the sensor to improve the signal to noise ration.
Wide dinamic range
TERA is designed to guarantee a high charge sensitivity (down to 50 fC) while ensuring a wide dynamic range (from 1 pA to 3 mA).
A versatile solution
Suitable for different detector technologies as ionization chambers, scintillators, electrometers.
Tested and verified with all the particle therapy accelerators (cyclotrons, synchrotrons, linear accelerators) and all their beam structures.
Simplify your QA with precise data analysis and record
The Smart Brain
Quick data analysis
All our devices are equipped with data analysis software conceived to speed up all the routine QA measurements with an intuitive, functional and user-friendly interface. From measurement to report in a few clicks.
High accessibility
With its browser-based versatile QA data management software, it allows accessing the data logbook from any terminal device.
Easy trend analysis
It can be used to visualize and manage all past QA reports, statistically analyze the trend of clinical beam parameters, thus checking the status of the beamline and evaluating the need of beamline maintenance interventions.
Raw data transparency
The QA raw data can be visualized, exported, and analysed by choosing among the preconfigured analysis protocols or implementing personalized algorithms in a comprehensive software development environment.
Report and data storage
A dedicated report function allows creating, storing and printing a detailed description of the measured data and QA results.
