AQuracy

A new handy way to improve
your particle therapy qa

For Spot characterization and machine QA

AQuracy

A new handy way to improve
your particle therapy qa

For Spot characterization and machine QA

Spot characterization and machine QA

A consolidated partnership story

Scintillator and CMOS technology

Spot characterization and machine QA

A consolidated partnership story

Scintillator and CMOS technology

Ideal for spot characterization and machine QA

Ideal for spot characterization and machine QA

High sensitivity

Beam profiling system for spot characterization and machine QA. It is based on a scintillating screen and a highly sensitive and low noise charged coupled device camera.

Precise alignment

Conceived to be precisely aligned at the isocenter to characterize the therapeutic particle beam.

Beam field verification

AQuracy allows to verify the radiation field, lateral penumbras, flatness and asymmetry with an estimated uncertainty <2% during beam characterization tests and prior to particle treatments.

High sensitivity

Beam profiling system for spot characterization and machine QA. It is based on a scintillating screen and a highly sensitive and low noise charged coupled device camera.

Precise alignment

Conceived to be precisely aligned at the isocenter to characterize the therapeutic particle beam.

Beam field verification

AQuracy allows to verify the radiation field, lateral penumbras, flatness and asymmetry with an estimated uncertainty <2% during beam characterization tests and prior to particle treatments.

Scintillator & CCD camera

Highly sensitive and low noise

AQuracy consists of a 5 cm diameter scintillating screen and a highly sensitive and low-noise CCD camera, which collects the light coming from the scintillator when hit by the ion beam.

400 x 125 x 365 mm3

Dimensions

<10 Kg

Weight

Mano grande

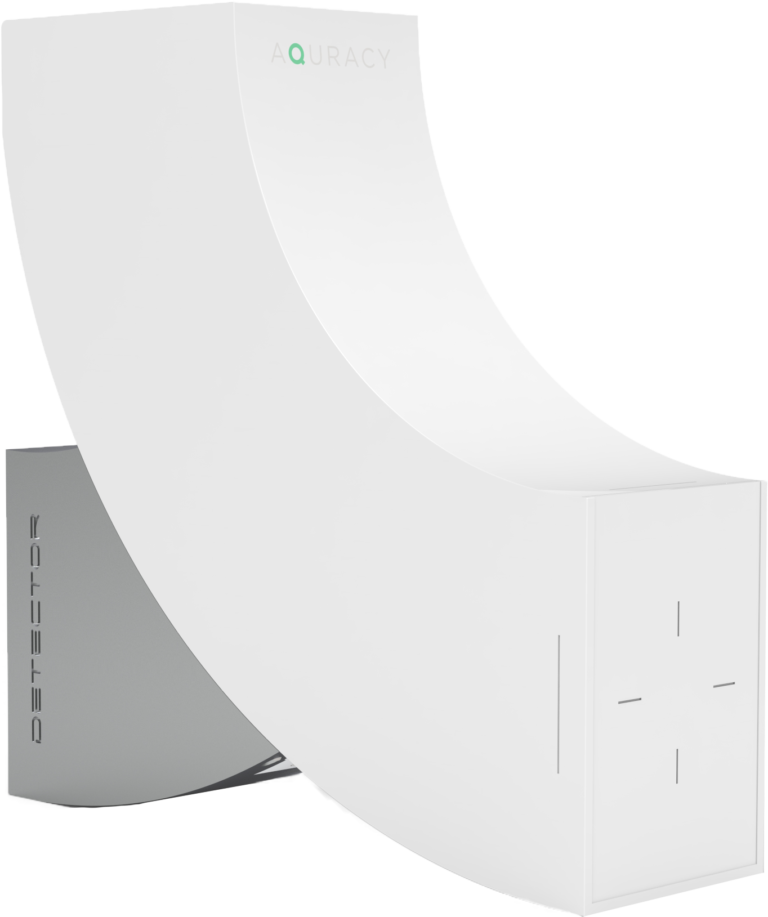

Aquarcy2
Mano grande

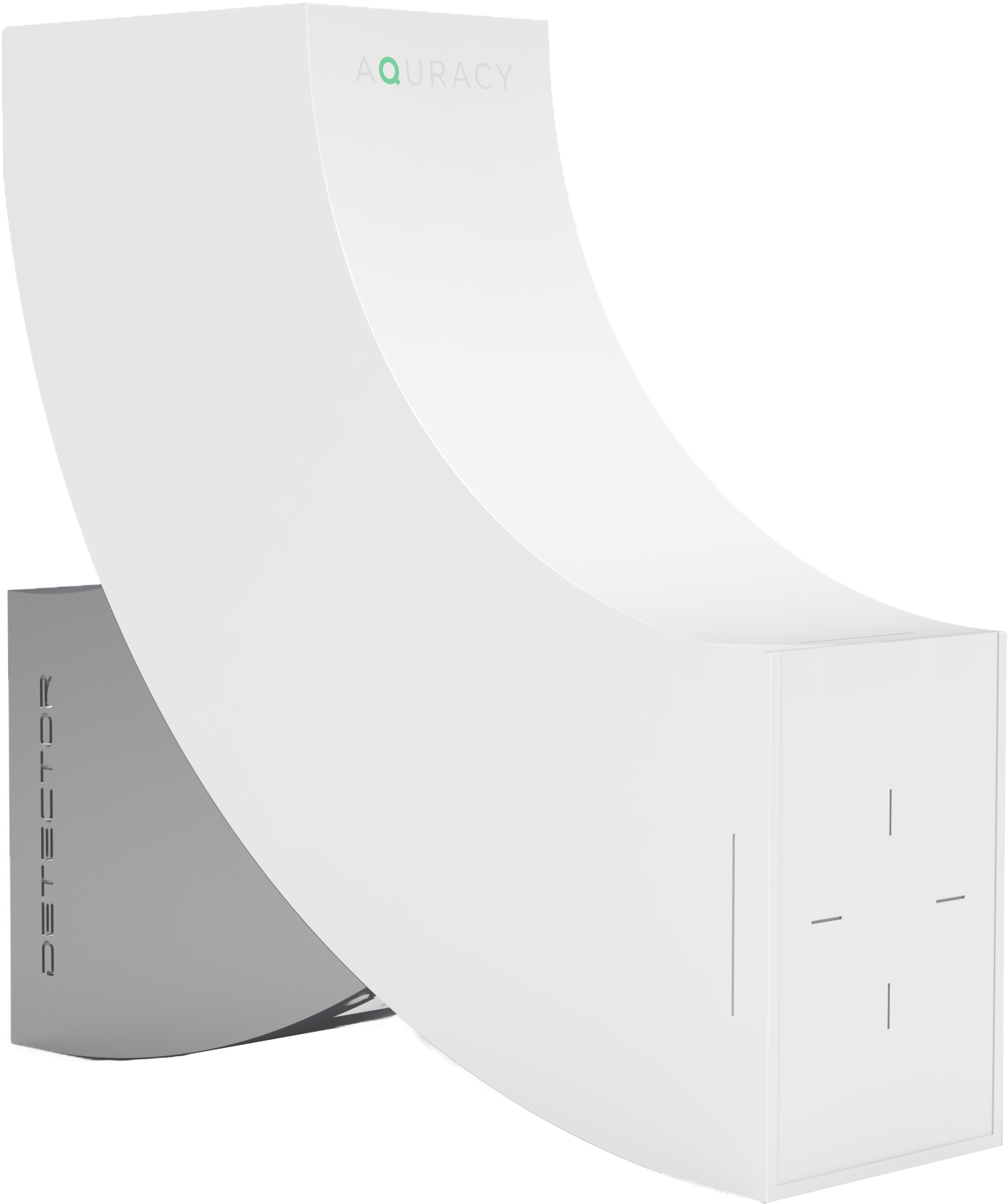

Aquarcy2

Technical Specifications

TYPE OF DETECTOR

CCD Camera + Scintillator

TOTAL SENSITIVE AREA

Ø: 5 cm

SCINTILLATOR SCREEN

Emission peak ~ 410 nm, Thickness 1 mm

NATIVE RESOLUTION

<10 um

REPEATABILITY OF THE MEASUREMENT

> 99 %

DATA COMMUNICATION

Ethernet TCP/IP

EXTERNAL DIMENSIONS

400 x 125 x 395 mm3

WEIGHT

<10 kg

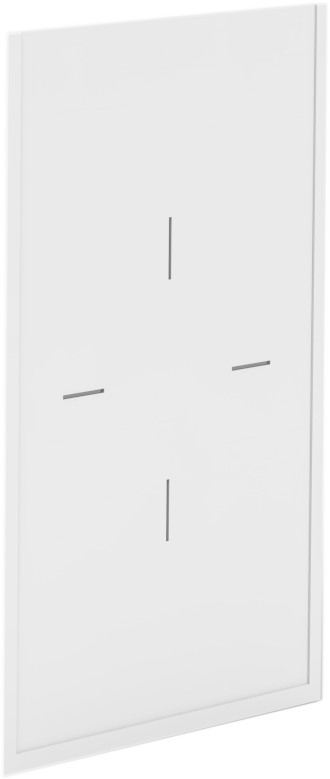

Livello

Come and see the magic!

What’s behind a reliable and performing device? A beating heart and a smart brain.
All our devices are based on proprietary front-end electronics and include embedded software, power supply and control unit for an optimized signal to noise ratio and a more comfortable set up.

Design Made in Italy

Simplify your QA with precise data analysis and record

The Smart Brain

Quick data analysis

All our devices are equipped with data analysis software conceived to speed up all the routine QA measurements with an intuitive, functional and user-friendly interface. From measurement to report in a few clicks.

High accessibility

With its browser-based versatile QA data management software, it allows accessing the data logbook from any terminal device.

Raw data transparency

The QA raw data can be visualized, exported, and analysed by choosing among the preconfigured analysis protocols or implementing personalized algorithms in a comprehensive software development environment.

Report and data storage

A dedicated report function allows creating, storing and printing a detailed description of the measured data and QA results.Â
